理士电池在长期不懈的开发研制VRLA电池(AGM隔板)的基础上,完全依靠自己的技术和实力已成功地开发出LEOCH GEL BATTERY,经过模拟加速试验显示效果良好, 理士胶体电池各项质量指标均已达到国外先进水平,而且生产已成系列化
1. 多用途的
2. 不间断电源
3. 电子能源系统
4. 紧急备用电源
5. 紧急灯
6. 铁路信号
7. 航空信号
8.安防系统
9.电子器械与装备
10.通话系统电源
11.直流电源
12.自动控制系统
电池型号 | 额定电压(V) | C20/Ah | C10/Ah | 外形尺寸(mm) | 重量/kg | 端子形式 |
长/L | 宽/B | 高/H | 总高/TH |
DJW6-1.2 | 6 | 1.2 | 1.1 | 97 | 24 | 51.5 | 57.5 | 0.29 | T1 |
DJW6-2.0 | 6 | 1.8 | 1.7 | 43 | 37 | 76 | 76 | 0.34 | / |
DJW6-2.8 | 6 | 2.8 | 2.6 | 66 | 33 | 97 | 103 | 0.57 | T1 |
DJW6-3.0 | 6 | 3.0 | 2.8 | 70 | 47 | 100 | 106 | 0.64 | T1/T2 |
DJW6-3.2 | 6 | 3.2 | 3.0 | 134 | 34 | 60 | 66 | 0.67 | T1 |
DJW6-4.0 | 6 | 4.0 | 3.7 | 70 | 47 | 100 | 106 | 0.76 | T1/T2 |
DJW6-4.5 | 6 | 4.5 | 4.2 | 70 | 47 | 100 | 106 | 0.78 | T1/T2 |
DJW6-5.0 | 6 | 5.0 | 4.7 | 169.5 | 34.5 | 70 | 74 | 0.95 | T1 |
DJW6-5.0T | 6 | 5.0 | 4.7 | 70 | 47 | 100 | 106 | 0.84 | T1/T2 |
DJW6-5.5 | 6 | 5.5 | 5.1 | 70 | 47 | 100 | 106 | 0.90 | T1/T2 |
DJW6-7.0 | 6 | 7.0 | 6.5 | 150 | 34 | 94 | 100 | 1.12 | T1/T2 |
DJW6-7.2 | 6 | 7.2 | 6.7 | 150 | 34 | 94 | 100 | 1.20 | T1/T2 |
DJW6-7.5 | 6 | 7.5 | 7.0 | 150 | 34 | 94 | 100 | 1.20 | T1/T2 |
DJW6-8.0 | 6 | 8.0 | 7.4 | 150 | 34 | 94 | 100 | 1.20 | T1/T2 |
DJW6-8.5 | 6 | 8.5 | 7.9 | 98 | 56 | 118 | 119.5 | 1.52 | T1/T2 |
DJW6-10 | 6 | 10.0 | 9.3 | 151 | 50.5 | 94 | 100 | 1.62 | T1/T2 |
DJW6-12 | 6 | 12.0 | 11.2 | 151 | 50.5 | 94 | 100 | 1.80 | T1/T2 |
DJW6-20 | 6 | 20.0 | 18.6 | 157 | 83 | 125 | 125 | 3.21 | T3-A |
DJW6-36 | 6 | 36.0 |
| 161 | 87 | 163 | 175 | 5.50 | T3-A |
DJW12-0.8 | 12 | 0.8 | 0.75 | 96 | 25 | 62 | 62 | 0.36 | / |
DJW12-1.2 | 12 | 1.2 | 1.1 | 97 | 43 | 52 | 58 | 0.57 | T1 |
DJW12-1.9 | 12 | 1.9 | 1.8 | 178 | 35 | 60 | 66 | 0.88 | T1 |
DJW12-2.2 | 12 | 2.2 | 2.05 | 70.5 | 47.5 | 97 | 103 | 0.80 | T1 |
DJW12-2.3 | 12 | 2.3 | 2.1 | 178 | 35 | 60 | 66 | 0.97 | T1 |
DJW12-2.9 | 12 | 2.9 | 2.7 | 79 | 56 | 99 | 105 | 1.10 | T1 |
DJW12-3.5 | 12 | 3.5 |
| 134 | 67 | 60.5 | 66.5 | 1.35 | T1 |
DJW12-4.0 | 12 | 4.0 | 3.7 | 90 | 70 | 101 | 107 | 1.45 | T1/T2 |
DJW12-4.5 | 12 | 4.5 | 4.2 | 90 | 70 | 101 | 107 | 1.50 | T1/T2 |
DJW12-5.0 | 12 | 5.0 | 4.7 | 151 | 53 | 93 | 99 | 1.75 | T1/T2 |
DJW12-5.0T | 12 | 5.0 | 4.7 | 90 | 70 | 101 | 107 | 1.60 | T1/T2 |
DJW12-5.4 | 12 | 5.4 | 5.0 | 90 | 70 | 101 | 107 | 1.83 | T1/T2 |
DJW12-5.5 | 12 | 5.5 | 5.1 | 151 | 51 | 93 | 99 | 1.80 | T1/T2 |
DJW12-6.5 | 12 | 6.5 | 6.1 | 151 | 65 | 93.5 | 99.5 | 2.14 | T1/T2 |

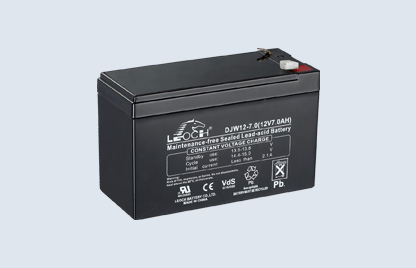

DJW12-7.0 | 12 | 7.0 | 6.5 | 151 | 65 | 93.5 | 99.5 | 2.26 | T1/T2 |
DJW12-7.5 | 12 | 7.5 | 7.0 | 151 | 65 | 93.5 | 99.5 | 2.42 | T1/T2 |
DJW12-8.0 | 12 | 8.0 | 7.5 | 151 | 65 | 93.5 | 99.5 | 2.50 | T1/T2 |
DJW12-8.8 | 12 | 8.8 | 8.2 | 151 | 65 | 93.5 | 99.5 | 2.66 | T1/T2 |
DJW12-10 | 12 | 10 | 9.3 | 151 | 98 | 95 | 101 | 3.25 | T1/T2 |
DJW12-10B | 12 | 10 | 9.3 | 151 | 65 | 111 | 117 | 3.11 | T1/T2 |
DJW12-12 | 12 | 12 | 11.2 | 151 | 98 | 95 | 101 | 3.50 | T1/T2 |
DJW12-15 | 12 | 15 | 14 | 181.5 | 76.5 | 167.5 | 167.5 | 4.70 | T3 |
DJW12-18 | 12 | 18 | 16.7 | 181.5 | 76.5 | 167.5 | 167.5 | 5.44 | T3 |

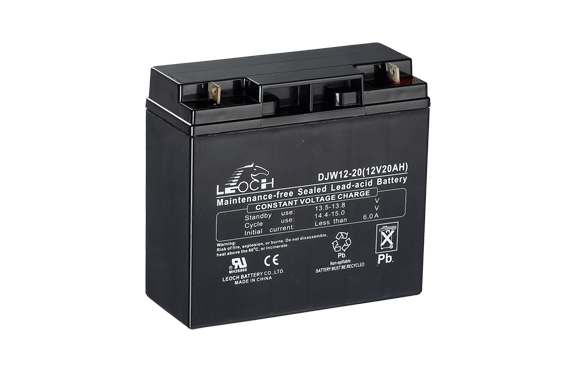

DJW12-20 | 12 | 20 | 18.6 | 181.5 | 76.5 | 167.5 | 167.5 | 6.0 | T3 |
DJW12-24 | 12 | 24 | 22.3 | 166 | 175 | 125 | 125 | 7.8 | T3 |
DJW12-26 | 12 | 26 | 24.2 | 166 | 175 | 125 | 125 | 7.8 | T3 |
DJW12-28 | 12 | 28 | 26 | 166 | 175 | 125 | 125 | 8.6 | T3 |
DJW12-30 | 12 | 30 | 27.9 | 195 | 130 | 164 | 167 | 9.7 | T6 |
DJW12-33 | 12 | 33 | 30.7 | 195 | 130 | 164 | 167 | 10.5 | T6 |
DJW12-35 | 12 | 35 |
| 195 | 130 | 164 | 170 | 11.2 | T6
|
